VAN BI 3 NGẢ VI SINH KẸP CLAMP
Van bi 3 ngả vi sinh kẹp clamp
Sanitary three way ball valve body
Nominal diameter: Φ 20 - Φ 102
Valve body material: 304, 316, 316L
Connection mode: clamp quick installation type, welding type
Pressure rating: PN1.6MPa

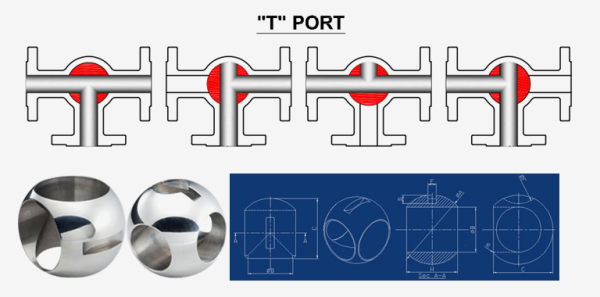

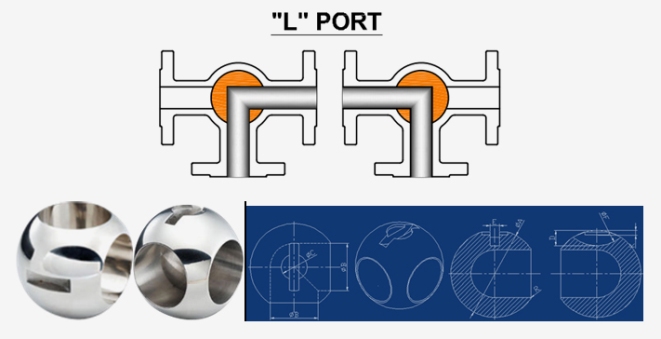

Structure type: floating ball core direct acting type; floating ball core tee T-type, tee L-type
In valve assembly
Valve seat sealing: PTFE: - 30 ℃ ~ 150 ℃
PPL ：-30℃～180℃
Valve core material: 304, 316, 316L
Stem material: 304, 316, 316L
Liên hệ: 0978 671 212
Van bi 3 ngả vi sinh kẹp clamp
Sanitary three way ball valve body
Nominal diameter: Φ 20 - Φ 102
Valve body material: 304, 316, 316L
Connection mode: clamp quick installation type, welding type
Pressure rating: PN1.6MPa
Structure type: floating ball core direct acting type; floating ball core tee T-type, tee L-type
In valve assembly
Valve seat sealing: PTFE: - 30 ℃ ~ 150 ℃
PPL ：-30℃～180℃
Valve core material: 304, 316, 316L
Stem material: 304, 316, 316L
Liên hệ: 0978 671 212
